Automatic Concrete Wire Mesh Panel Welding Machine For Building Mesh
Wire Welding Machine Function Features
| Main characteristic | Both line wires and cross wires are coiled, can weld continuous wire mesh sheets and wire mesh rolls. |
| Main functional structures | Line wire straightening and locator device, line wire fed and locator device, cross wire straightening, cutting and alignment device,mechanical hauling wire mesh device, wire mesh locator device. |
| constituent part | material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc. |
Wire Welding Machine Product Description
1.The machine adopts PLC program system.
2.The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable.
3. The weft wire supply is automatic.
4.The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet.
5.Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter.
6. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine.
7.It mainly used for fence netting (highway, railway and mountain fence mesh, construction mesh etc.)
Wire Welding Machine Technical Parameter
| name | Unit | parameter |
| Diameters of steel wires | mm | 4-7 |
| Maximum width of wire meshes | mm | 2100 |
| mesh size | Space of the vertical wires | mm | adjust |
| Space of the horizontal wires | mm | 50-450 |
| welded points | Points | 21 |
| Welding frequency | Times/min | 50 |
| power | VHz | 380/50 |
| Working pressure of the air-driving system | Mpa | ≥0.8 |
| Pressure of cooling water | Mpa | 0.3≤P<0.4 |
| Dimension (L x W x H) | m | 25×3.2×2.3 |
| weight | T | 18 |
Product Tags:
|
|

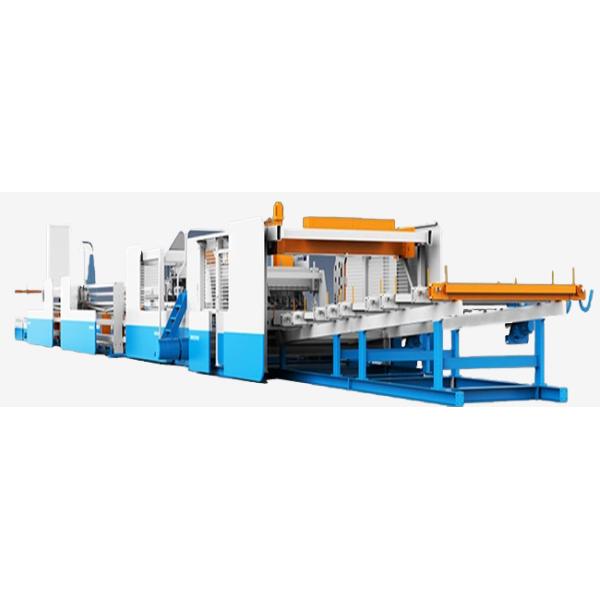

380V Mesh Panel Welding Machine Images
|
